Garbage Disposal P-Trap. Install, Clear, and Fix Leaks

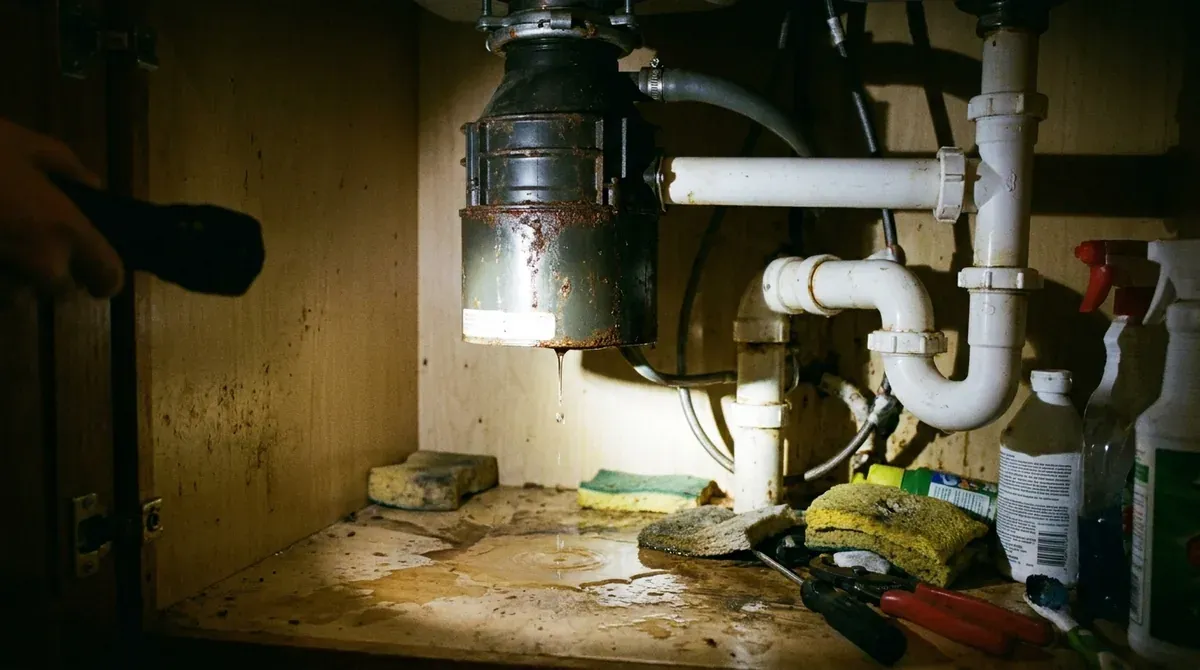

The garbage disposal P-trap is the U-shaped pipe that connects the disposal outlet to the wall drain. It holds a small standing water seal that blocks sewer gas from rising into the kitchen. When it clogs, water backs up in the sink; when it leaks, drips pool under the cabinet. If you have a garbage disposal leaking issue, check which component is actually at fault before reaching for tools.
Tools and materials you need first
Gather everything before opening the cabinet. All three procedures below use the same core toolkit.
Tools:
- 10-inch slip-joint pliers
- 2-quart bucket (or larger)
- Flashlight
- Plumber’s tape (Teflon) for threaded fittings
Materials:
- 1.5-inch slip-joint washers, 2-pack ($2-$5) for resealing leaks
- Replacement 1.5-inch PVC P-trap kit ($15-$25) if replacing. Chrome kits run $25-$45
- Replacement P-trap kits and washers{:target=“_blank”} are available at any hardware store or online
Sizing note: The standard garbage disposal P-trap is 1.5-inch PVC. Older homes sometimes have undersized 1.25-inch traps. Those clog more frequently. When replacing a 1.25-inch trap, upgrade to 1.5-inch at the same time.
If you would pay a plumber, professional P-trap service costs $75-$150, often bundled with a full disposal service call.
How to clear a clogged P-trap (30 minutes)
This is the most common reason people land on this page. A slow drain or standing water in the sink is almost always a P-trap clog.
If you already suspect a deeper blockage, see clogged garbage disposal before disassembling the P-trap.
Turn off the disposal’s breaker to ensure safety. Position a 2-quart bucket directly under the P-trap; anticipate at least a full cup of standing water when you remove it. Unscrew both slip nuts by hand, turning counterclockwise; opt for 10-inch slip-joint pliers if they are stiff but avoid excessive force on old PVC. Once detached, slide the P-trap down and off, tipping it into the bucket to drain sludge and standing water. Utilize a straightened coat hanger or bottle brush to remove sediment and hardened grease from the trap body; flush under hot running water until clear. Inspect rubber washers at both slip-nut connections for cracks or compression; replace if necessary. Reinstall, hand-tightening slip nuts until snug, then give each a quarter-turn with pliers for proper torque. Run water for 30 seconds to check for leaks.
We recommend cleaning the disposal P-trap every 6-12 months. Grease from cooking binds to food sediment in the lowest point of the trap, hardens over time, and reduces flow capacity. DIY cleaning takes 30 minutes; a plumber charges $75-$150 for the same service.
Pay attention.
After physical cleaning, a baking soda flush helps dissolve residue left on pipe walls. Pour 1/4 cup baking soda into the drain, follow with 1/2 cup white vinegar, wait 5-10 minutes, then flush with hot water. This method (recommended in the BobVila unclogging guide{:target=“_blank”}) works as a follow-up, not a substitute, for physical removal.
How to fix a leaking P-trap
P-trap leaks almost always originate at the two slip-nut connections, not the pipe body itself. We find the fix in 90% of cases is replacing the compressed slip-joint washer ($2-$5) rather than tightening, which risks cracking old PVC threads.
Step 1: Find the exact leak source. Dry the area under the sink with a rag. Run water and watch both joints: the upper connection at the disposal outlet end. The lower connection at the wall drain arm. Mark which one drips.
Step 2: Try tightening first. Hand-tighten the leaking slip nut, then add a quarter-turn with 10-inch slip-joint pliers. Run water again.
Step 3: Replace the washer if it still leaks. Unscrew the leaking nut, pull out the old washer, and take it to the hardware store as a template. A 1.5-inch slip-joint washer costs $2-$5. Reinstall, snug plus a quarter-turn, and test again.
Over-tightening risk: PVC slip nuts more than 10 years old can crack when forced. If the nut spins but won’t seat, or if you hear a crack, the threads are stripped and the full trap needs replacement ($15-$25 in parts, 30 minutes of work).
When replacement is the right call:
- Crack in the pipe body (not just a joint)
- Missing or deteriorated washer seat
- Stripped slip-nut threads that won’t hold torque
How to connect (or replace) a P-trap
Use this section if you just installed a new disposal and need to run the drain, or if you’re swapping a cracked trap.
Bottom line.
Standard configuration (top to bottom):
- Disposal outlet port
- Tailpiece (vertical pipe, 5-8 inches long) connecting disposal to P-trap inlet
- P-trap (U-shaped)
- Horizontal drain arm running to the wall inlet
Common install problem: The disposal outlet sits too high and the drain arm angles upward toward the wall. Water won’t drain correctly because gravity requires a downward slope toward the wall. Fix this by adding an extension tube (available in 6-inch and 12-inch lengths) on the tailpiece to lower the P-trap, or insert a 45-degree elbow between the tailpiece and the trap.
Step-by-step: First, dry-fit all pieces without tightening first to ensure the P-trap inlet sits below the disposal outlet and that the drain arm slopes gently downward toward the wall. Next, verify the wall drain inlet size; it’s usually 1.5 inches, but if uncertain, bring the old trap to the hardware store for confirmation. Hand-tighten all slip-nut connections until snug, then give them a quarter-turn with pliers, do not use pipe wrench torque on slip-joint PVC. Finally, test the connection by running water for 30 seconds before closing the cabinet.
Chrome vs PVC: Chrome traps make leaks visible faster, since you can see water on shiny metal immediately. PVC is lighter and easier to hand-tighten. Either works under a sink. If you’re installing a new disposal from scratch, PVC is the faster choice.
The garbage disposal P-trap is a U-shaped 1.5-inch PVC pipe located 5-8 inches below the disposal outlet. It holds a small standing water seal that blocks sewer gas from rising into the kitchen. Without it, methane and hydrogen sulfide from the sewer can enter the living space.
When to call a plumber
Most P-trap repairs are within DIY reach. Call a plumber when the problem is past the P-trap itself.
DIY-appropriate:
- Clogged trap body: $0-$15 in materials, 30 minutes
- Leaking slip-nut joint: $2-$5 washer replacement
- Full trap replacement: $15-$25 PVC kit, 30-45 minutes
Plumber scope:
- Wall drain fitting is corroded, cracked, or the wrong size for standard 1.5-inch connections
- P-trap is clear but water still backs up, indicating a clog further down the drain line
- You smell sewer gas after reinstalling the trap (possible venting problem, not a P-trap issue)
If the disposal won’t drain even after clearing the P-trap, the blockage is downstream. A plumber can snake the line from the clean-out fitting without disassembling the disposal.
Professional P-trap service typically costs $75-$150, usually bundled into a broader disposal service call.
FAQ
Does a garbage disposal need a P-trap?
Yes. Plumbing code requires a P-trap on all disposal drain installations. Per the IAPMO Uniform Plumbing Code{:target=“_blank”}, every fixture drain must have a trap to maintain a water seal that blocks sewer gas. There’s no legal way to skip the P-trap on a permitted installation.
What size P-trap fits a garbage disposal?
The standard garbage disposal P-trap is 1.5 inches in diameter. Some older homes have 1.25-inch traps installed, which clog more frequently because the smaller diameter captures more sediment. Upgrade to 1.5 inches when replacing any undersized trap.
How often should I clean the P-trap?
Every 6-12 months for typical disposal use. If the drain slows before that interval, clean immediately rather than waiting. Households that regularly grind starchy or greasy food (pasta, cooking oil) should lean toward the 6-month end of that range.
Can I use P-traps on both sides of a double sink?
No. The standard double-sink setup uses one shared P-trap. Both drains connect via a tee fitting before a single trap. Installing a second P-trap in a double-sink is incorrect and creates a code violation in most jurisdictions.
Why does my P-trap leak even after tightening?
The slip-joint washer is likely compressed flat or cracked from age. Continued tightening without replacing the washer won’t stop the leak. It will only risk cracking the PVC nut. Replace the washer ($2-$5 at any hardware store) and reinstall at snug plus a quarter-turn.
